Do Music Source Separation Models Preserve Spatial Information in Binaural Audio?
Accepted at ISMIR 2025
[PDF]
Summary

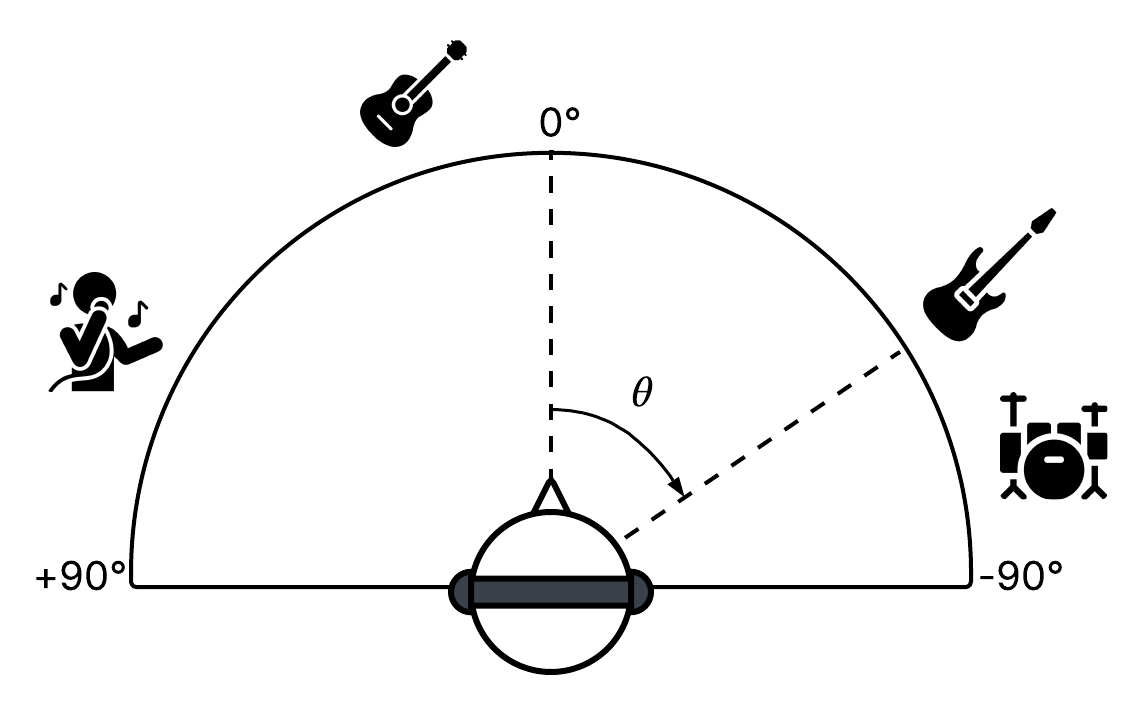

Binaural audio remains underexplored within the music information retrieval community. Motivated by the rising popularity of virtual and augmented reality experiences as well as potential applications to accessibility, we investigate how well existing music source separation (MSS) models perform on binaural audio. Although these models process two-channel inputs, it is unclear how effectively they retain spatial information. In this work, we evaluate how several popular MSS models preserve spatial information on both standard stereo and novel binaural datasets. Our binaural data is synthesized using stems from MUSDB18-HQ and open-source head-related transfer functions by positioning instrument sources randomly along the horizontal plane. We then assess the spatial quality of the separated stems using signal processing and interaural cue-based metrics. Our results show that stereo MSS models fail to preserve the spatial information critical for maintaining the immersive quality of binaural audio, and that the degradation depends on model architecture as well as the target instrument. Finally, we highlight valuable opportunities for future work at the intersection of MSS and immersive audio.
Audio Examples and Metrics
SSR: Signal to Spatial Distortion Ratio SRR: Signal to Residual Distortion Ratio
ΔITD: Distortion in Interaural Time Difference ΔILD: Distortion in Interaural Level Difference
Bass: Hollow Ground - "Ill Fate"
Binaural
Stereo
Input - Mixture
Input - Mixture
Reference Stem (θ = 90°)
Reference Stem
Output - Demucs
SSR: 6.47 dB SRR: 3.31 dB
ΔITD: 816.33 μs ΔILD: 1.49 dB
Output - Demucs
SSR: 9.56 dB SRR: 0.36 dB
ΔITD: 0.00 μs ΔILD: 0.65 dB
Output - Open-Unmix
SSR: 6.79 dB SRR: -1.10 dB
ΔITD: 997.73 μs ΔILD: 2.61 dB
Output - Open-Unmix
SSR: 12.01dB SRR: -2.62
ΔITD: 0.00 μs ΔILD: 0.22 dB
Output - Spleeter
SSR: 12.13 dB SRR: -2.60 dB
ΔITD: 1020.41 μs ΔILD: 2.35 dB
Output - Spleeter
SSR: 4.09 dB SRR: -3.53 dB
ΔITD: 22.68 μs ΔILD: 0.39 dB
Vocals: Ben Carrigan - "We'll Talk About It All Tonight"
Binaural
Stereo
Input - Mixture
Input - Mixture
Reference Stem (θ = 60°)
Reference Stem
Output - Demucs
SSR: 5.52 dB SRR: 0.00 dB
ΔITD: 566.89 μs ΔILD: 0.27 dB
Output - Demucs
SSR: 5.77 dB SRR: 0.08 dB
ΔITD: 0.00 μs ΔILD: 0.03 dB
Output - Open-Unmix
SSR: 1.45 dB SRR: -4.47 dB
ΔITD: 294.78 μs ΔILD: 0.14 dB
Output - Open-Unmix
SSR: 2.05 dB SRR: -1.92 dB
ΔITD: 0.00 μs ΔILD: 0.13 dB
Output - Spleeter
SSR: 0.00 dB SRR: -3.71 dB
ΔITD: 0.00 μs ΔILD: 0.73 dB
Output - Spleeter
SSR: 3.06 dB SRR: 0.00 dB
ΔITD: 0.00 μs ΔILD: 0.23 dB
Drums: The Easton Ellises - "Falcon 69"
Binaural
Stereo
Input - Mixture
Input - Mixture
Reference Stem (θ = 90°)
Reference Stem
Output - Demucs
SSR: 25.53 dB SRR: 10.06 dB
ΔITD: 0.00 μs ΔILD: 0.30 dB
Output - Demucs
SSR: 21.36 dB SRR: 10.16 dB
ΔITD: 0.00 μs ΔILD: 0.02 dB
Output - Open-Unmix
SSR: 24.60 dB SRR: 8.51 dB
ΔITD: 0.00 μs ΔILD: 0.37 dB
Output - Open-Unmix
SSR: 15.91 dB SRR: 6.40 dB
ΔITD: 0.00 μs ΔILD: 0.01 dB
Output - Spleeter
SSR: 19.32 dB SRR: 7.60 dB
ΔITD: 0.00 μs ΔILD: 0.51 dB
Output - Spleeter
SSR: 15.87 dB SRR: 7.14 dB
ΔITD: 0.00 μs ΔILD: 0.00 dB
Other: Enda Reilly - "Cur An Long Ag Seol"
Binaural
Stereo
Input - Mixture
Input - Mixture
Reference Stem (θ = -30°)
Reference Stem
Output - Demucs
SSR: 14.28 dB SRR: 7.64 dB
ΔITD: 0.00 μs ΔILD: 0.05 dB
Output - Demucs
SSR: 19.06 dB SRR: 9.40dB
ΔITD: 0.00 μs ΔILD: 0.04 dB
Output - Open-Unmix
SSR: 15.93 dB SRR: 4.69 dB
ΔITD: 90.70 μs ΔILD: 0.24 dB
Output - Open-Unmix
SSR: 15.24 dB SRR: 5.49 dB
ΔITD: 0.00 μs ΔILD: 0.36 dB
Output - Spleeter
SSR: 15.41 dB SRR: 3.77 dB
ΔITD: 0.00 μs ΔILD: 0.45 dB
Output - Spleeter
SSR: 15.46 dB SRR: 4.83
ΔITD: 0.00 μs ΔILD: 0.62 dB
